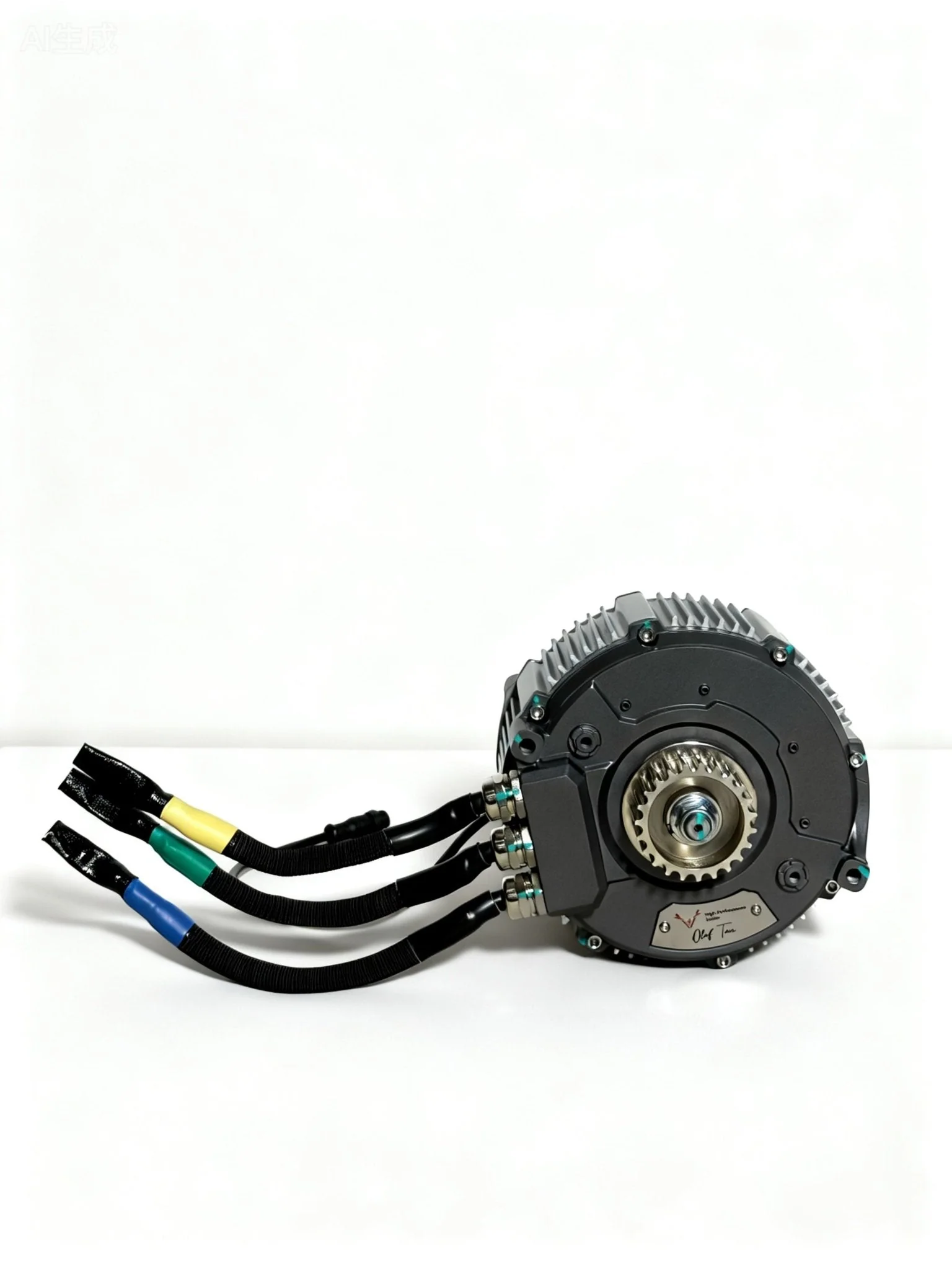

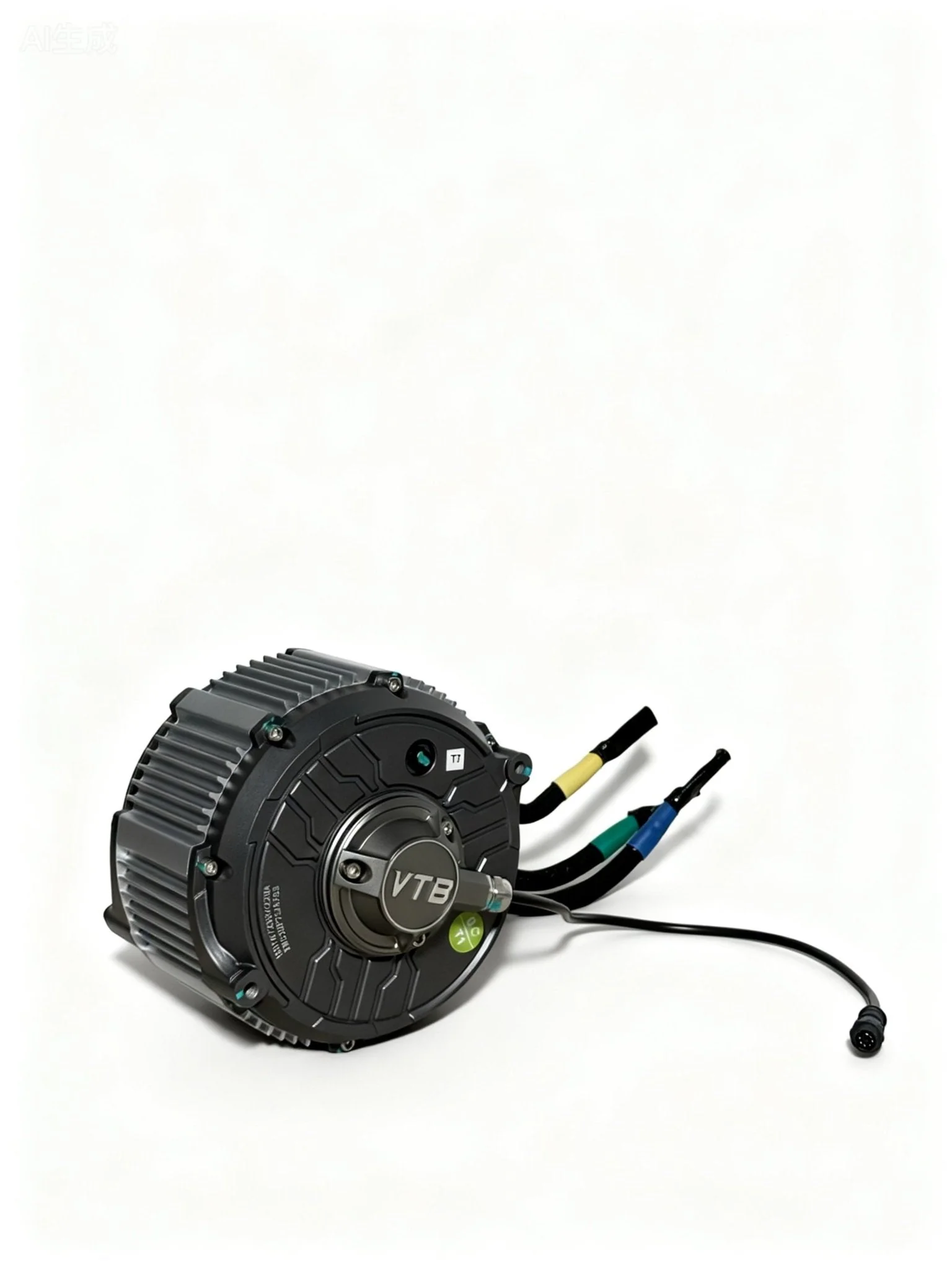

VTB 28kW Light E-moto Motor
Based on manufacturer and retailer listings when we last checked, not confirmed stock. Check the store before you buy.
Ventus’s (VTB) budget light e-moto motor: a claimed 28 kW and 62 Nm, 850 A, 75 KV, 9,500 rpm, IP67, 24 lb.
Where to buy
-
Charged Cycle Works$799
Prices change. Check the store before you buy. Two Wheel Current doesn’t sell anything. Some of these are affiliate links or codes: if you buy through them, the store may pay us a small commission at no extra cost to you. It never changes which products or stores we list.
Specs
Electrical
| Voltage range | 48–100 V | CLAIMED |
|---|---|---|
| Max phase current | 850 A | CLAIMED |
| KV | 75 rpm/V | CLAIMED |
Output
| Continuous power | Not listed | UNKNOWN |
|---|---|---|
| Peak power | 28 kW | CLAIMED |
| Peak torque | 62 Nm | CLAIMED |
| Max RPM | 9,500 rpm | CLAIMED |
Physical
| Motor type | IPM, 5 pole pairs | CLAIMED |
|---|---|---|
| Cooling | Not listed | UNKNOWN |
| Position sensor | ABZ+PWM encoder, 1,024 pulses | CLAIMED |
| Waterproof rating | IP67 | CLAIMED |
| Weight | 24 lb (10.9 kg) | CLAIMED |
Fitment
| Fits | Sur-Ron Light Bee, E Ride Pro SS, 79Bike Falcon GT, Rerode R1 / R1+ (see notes) | CLAIMED |
|---|---|---|
| Controller required | Yes (aftermarket; VTB V9600 recommended) | CLAIMED |
Pricing
| Price (US) | $799 | REPORTED |
|---|
Support
| Warranty | Not listed | UNKNOWN |
|---|
Listed fitment: Sur-Ron Light Bee; E Ride Pro SS 2.0 / 3.0; 79Bike Falcon M and GT; Rerode R1 and R1+. The Talaria XXX and Falcon Pro are listed with "does not fit stock motor", which the listing doesn’t explain. The listing contradicts itself on which sensor connector is more waterproof. Power limiting starts at 130 °C and cuts at 150 °C.
