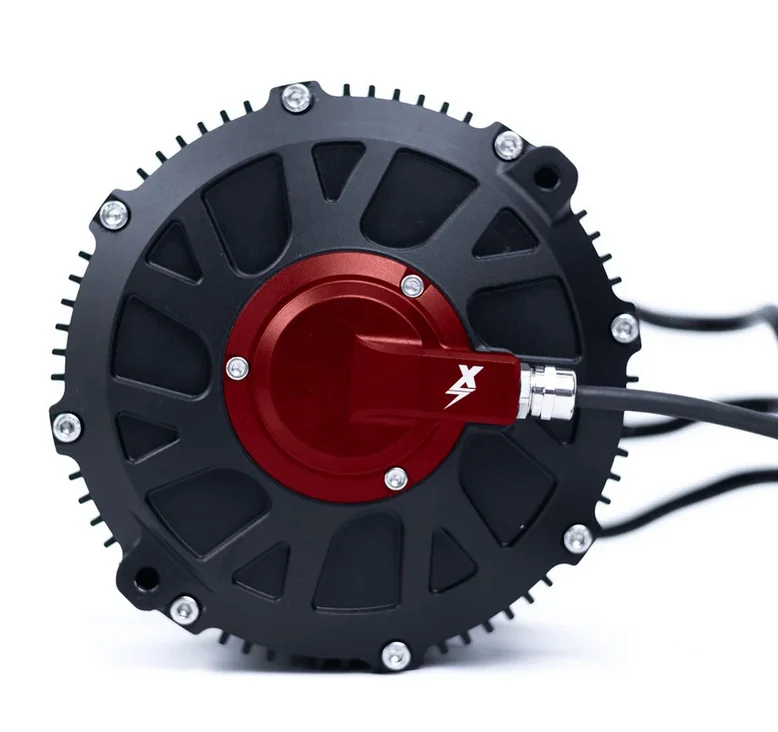

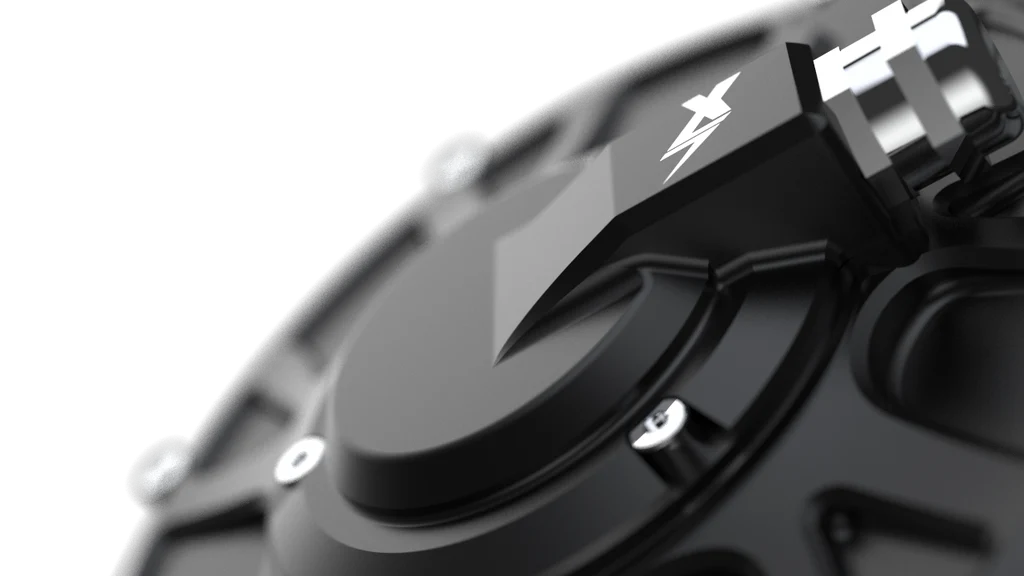

EBMX XLB-60 RACE
Based on manufacturer and retailer listings when we last checked, not confirmed stock. Check the store before you buy.
The race version of the XLB-60: custom IPM rotor, 35 kW rated, 13,000 rpm. EBMX’s tests show 32–34 kW on 20S 72V and 36–38 kW on 22S 81V.
Where to buy
-
Charged Cycle Works$1,249
Prices change. Check the store before you buy. Two Wheel Current doesn’t sell anything. Some of these are affiliate links or codes: if you buy through them, the store may pay us a small commission at no extra cost to you. It never changes which products or stores we list.
Specs
Electrical
| Voltage range | Not listed | UNKNOWN |
|---|---|---|
| Max phase current | 1,000 A (recommended setting) | CLAIMED |
| KV | Not listed | UNKNOWN |
Output
| Continuous power | Not listed | UNKNOWN |
|---|---|---|
| Peak power | 32–34 (72V) / 36–38 (81V) kW (EBMX testing) | CLAIMED |
| Peak torque | Not listed | UNKNOWN |
| Max RPM | 13,000 rpm | CLAIMED |
| Rated power | 35 kW | CLAIMED |
Physical
| Motor type | Custom IPM, 1 mm air gap | CLAIMED |
|---|---|---|
| Cooling | Air | CLAIMED |
| Position sensor | Encoder | CLAIMED |
| Waterproof rating | Not listed | UNKNOWN |
| Weight | Not listed | UNKNOWN |
Fitment
| Fits | Sur-Ron Light Bee S/X; E Ride Pro S, SS 2.0, SS 3.0, SR; Talaria X3/XXX version | CLAIMED |
|---|---|---|
| Controller required | Yes (EBMX X-9000 V2 or V3) | CLAIMED |
Pricing
| Price (US) | $1,249 | REPORTED |
|---|
Support
| Warranty | Not listed | UNKNOWN |
|---|
Needs an upgraded battery and the EBMX X-9000. EBMX recommends a 30 kW / 1,000 phase-amp controller setting. 180 °C windings, U42H magnets. The listing gives two top speeds for the same 64T / 72V setup (75 mph and 65 mph) without explaining the difference.
