EBMX XLB-60 Liquid Cooled Photo: Charged Cycle Works
EBMX · Fits Sur-Ron Light Bee
EBMX XLB-60 Liquid Cooled
Available$1,299 MSRP
Based on manufacturer and retailer listings when we last checked, not confirmed stock. Check the store before you buy.
Limited-edition water-cooled XLB-60: a claimed 35 kW peak and 52 Nm, 26 kW for 4.5 minutes (vs 13.6 kW for 28 min air-cooled), 95 KV, 27.6 lb.
⚠ Some specs on this page haven't been independently verified yet. Check the labels.
Compare with other motors →
Where to buy
-
Charged Cycle Works$1,299
Prices change. Check the store before you buy. Two Wheel Current doesn’t sell anything. Some of these are affiliate links or codes: if you buy through them, the store may pay us a small commission at no extra cost to you. It never changes which products or stores we list.
Specs
Electrical
| Voltage range | 48–104 V | CLAIMED |
|---|---|---|
| Max phase current | 900 A (500 A continuous) | CLAIMED |
| KV | 95 rpm/V | CLAIMED |
Output
| Continuous power | 26 kW (water-cooled, 4:30 min) | CLAIMED |
|---|---|---|
| Peak power | 35 kW | CLAIMED |
| Peak torque | 52 Nm | CLAIMED |
| Max RPM | 13,000 rpm | CLAIMED |
Physical
| Motor type | Custom IPM | CLAIMED |
|---|---|---|

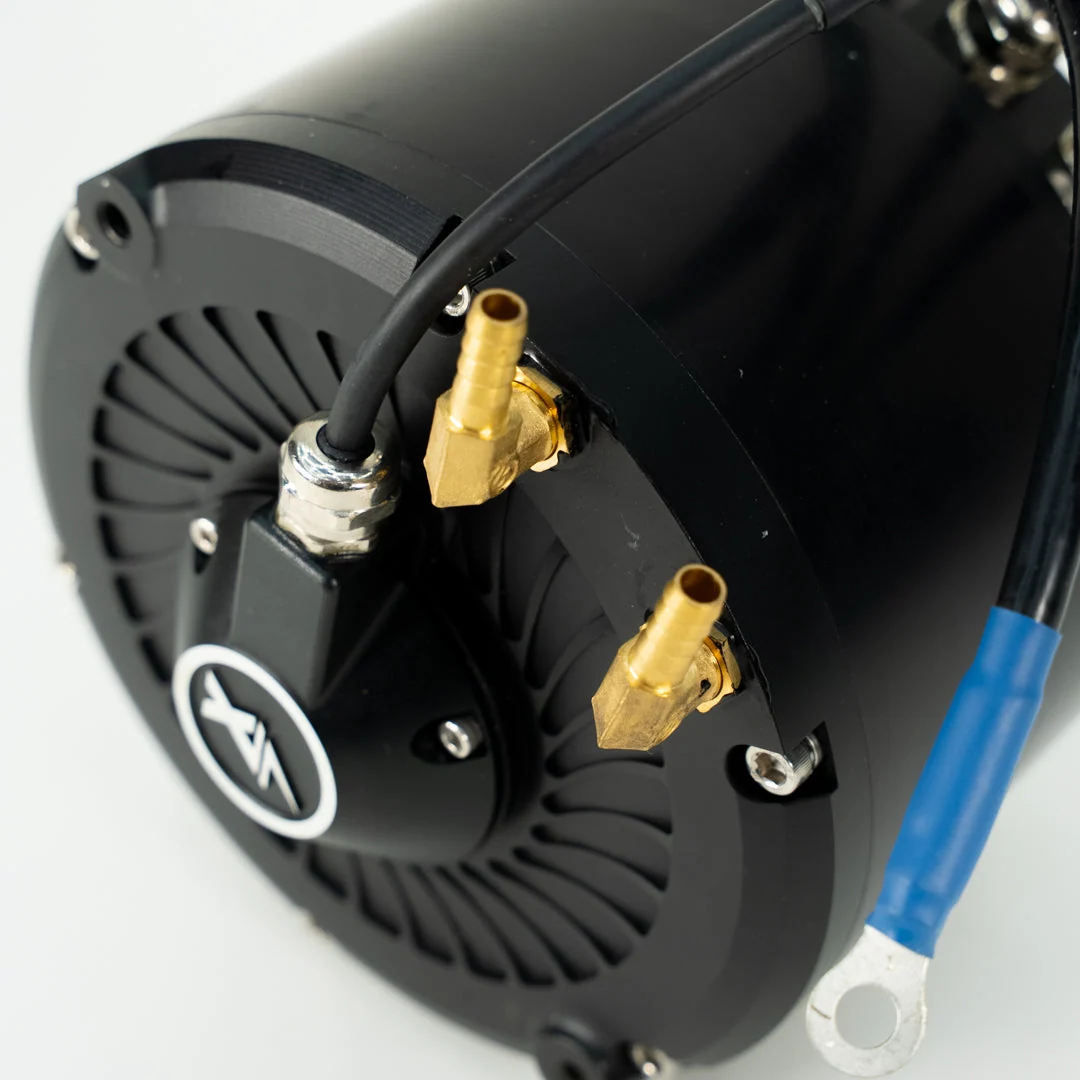

| Cooling | Liquid (water) | CLAIMED |
| Position sensor | Encoder (NJDC 605) | CLAIMED |
| Waterproof rating | Not listed | UNKNOWN |
| Weight | 27.6 lb (12.5 kg) | CLAIMED |
Fitment
| Fits | Sur-Ron Light Bee, E Ride Pro SS 2.0 | CLAIMED |
|---|---|---|
| Controller required | Yes (EBMX X-9000; not the stock controller) | CLAIMED |
Pricing
| Price (US) | $1,299 | REPORTED |
|---|
Support
| Warranty | 2 years | CLAIMED |
|---|
Ratings from the listing:
- Water-cooled: 26 kW for 4:30 min.
- Air-cooled: 13.6 kW for 28 min, or 24 kW for 2:20 min.
- Rated continuous phase current: 500 A (35 Nm).
- Limits: power starts limiting at 140 °C and cuts at 160 °C.
Same mounting and harness as the air-cooled XLB-60. Won’t work with a stock controller. The listing also calls it "35 kW rated", but its spec table lists 35 kW as peak.
