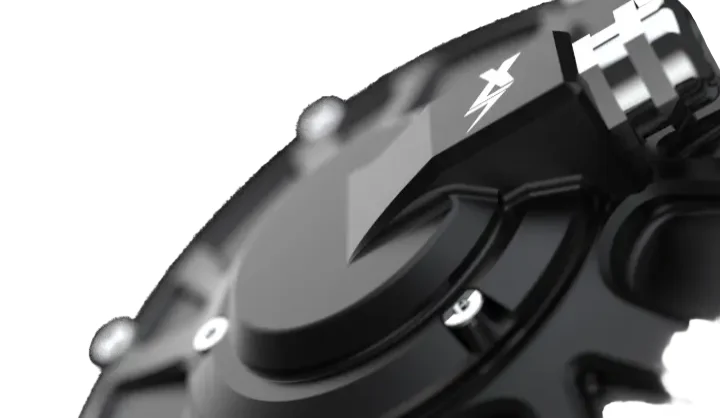

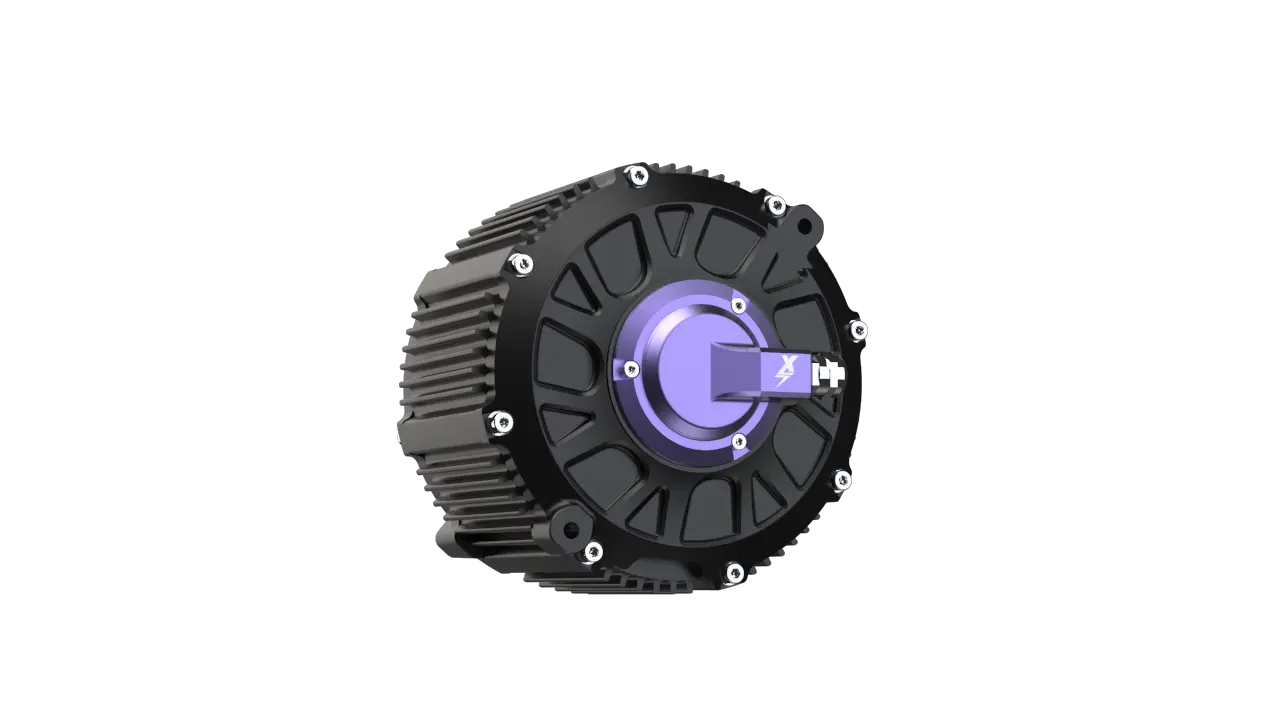

EBMX XLB-60 CORE
Based on manufacturer and retailer listings when we last checked, not confirmed stock. Check the store before you buy.
EBMX’s entry Light Bee / E Ride Pro motor: a claimed 41 kW peak at 90 V, 12,000 rpm, 87 KV. EBMX says 32–35 kW is realistic on 72V.
Where to buy
-
Charged Cycle Works$1,000
Prices change. Check the store before you buy. Two Wheel Current doesn’t sell anything. Some of these are affiliate links or codes: if you buy through them, the store may pay us a small commission at no extra cost to you. It never changes which products or stores we list.
Specs
Electrical
| Voltage range | 48–104 V | CLAIMED |
|---|---|---|
| Max phase current | 1,200 A | CLAIMED |
| KV | 87 rpm/V | CLAIMED |
Output
| Continuous power | Not listed | UNKNOWN |
|---|---|---|
| Peak power | 41 kW (90 V, 1,100 A; 32–35 on 72V) | CLAIMED |
| Peak torque | Not listed | UNKNOWN |
| Max RPM | 12,000 rpm | CLAIMED |
Physical
| Motor type | Not listed | UNKNOWN |
|---|---|---|
| Cooling | Not listed | UNKNOWN |
| Position sensor | Encoder (NJDC 605) | CLAIMED |
| Waterproof rating | Not listed | UNKNOWN |
| Weight | Not listed | UNKNOWN |
Fitment
| Fits | Sur-Ron Light Bee S/X; E Ride Pro S, SS 2.0, SS 3.0, SR; Talaria X3/XXX version | CLAIMED |
|---|---|---|
| Controller required | Yes (EBMX X-9000 V2 or V3) | CLAIMED |
Pricing
| Price (US) | $999.89 | REPORTED |
|---|
Support
| Warranty | 2 years | CLAIMED |
|---|
Peak power is quoted at 90 V and 1,100 phase amps, while the max phase current spec is 1,200 A. Real-world figure: 32–35 kW on 72V with an 18" rear wheel and 52T sprocket. 64 mm stator, 10 poles / 12 slots. Talaria X3/XXX versions are sold too, though the compatibility list doesn’t name them.
