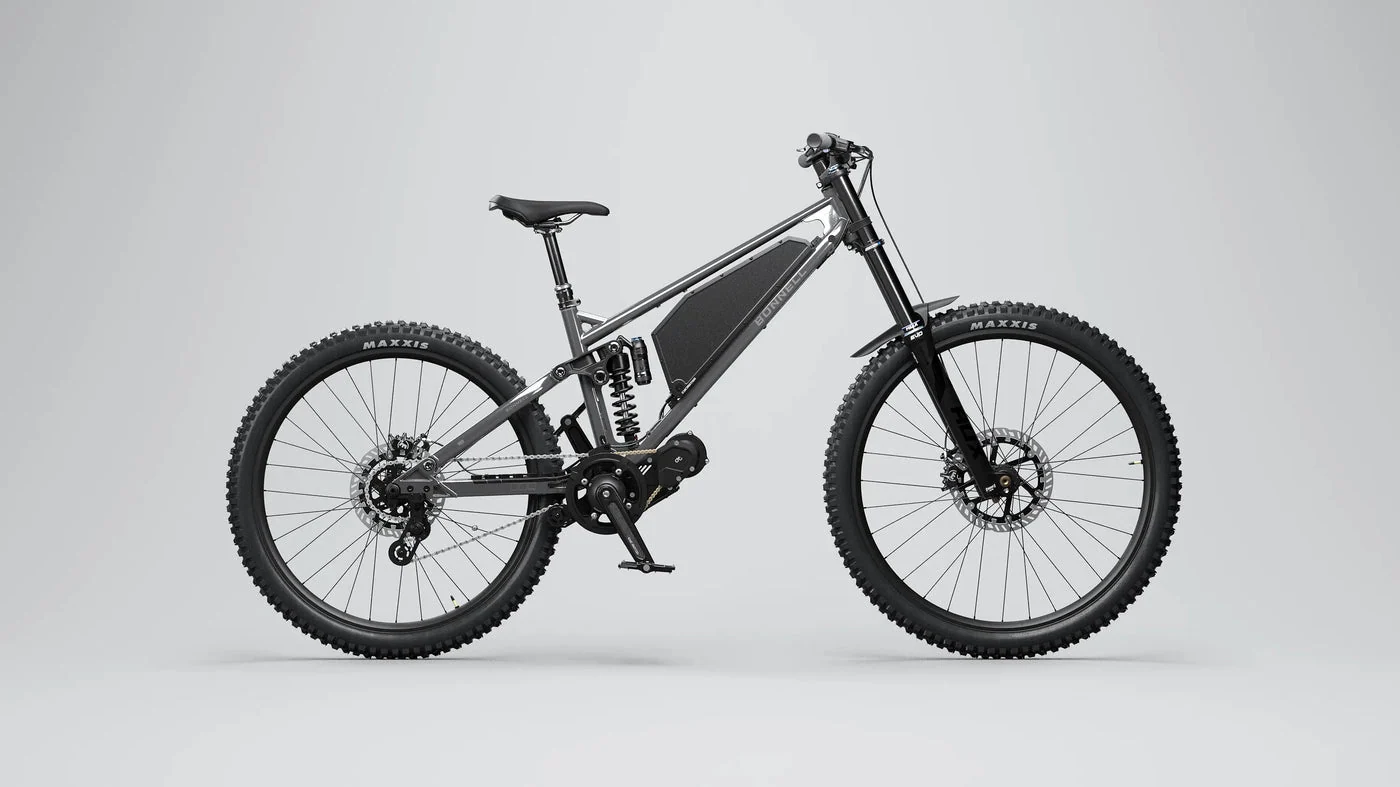

Bonnell 775 MX

Available$5,495 MSRP

Based on manufacturer and retailer listings when we last checked, not confirmed stock. Check the store before you buy.

A 6 kW, 280 Nm pedal-capable electric bike with a 200 mm Suntour fork and Magura 4-piston brakes. Faster than Class 2, so check your local rules.

⚠ Some specs on this page haven't been independently verified yet. Check the labels.

Compare with other bikes →

Where to buy

Charged Cycle Works Best price

$5,495

Shop ↗
Electric Cycle Rider

$5,895

Shop ↗

Prices change. Check the store before you buy. Two Wheel Current doesn’t sell anything. Some of these are affiliate links or codes: if you buy through them, the store may pay us a small commission at no extra cost to you. It never changes which products or stores we list.

Specs

Power

Peak motor power	6 kW	CLAIMED
Torque	280 Nm	CLAIMED

Battery

Battery	A65-series	CLAIMED
Battery capacity	1.3 kWh (72V 18Ah)	CLAIMED

Chassis

Fork	Suntour Rux 38 RC+, 200 mm	CLAIMED
Rear shock	Suntour Voro Coil 205×65	CLAIMED
Brakes	Magura MT5 4-piston, 220 / 203 mm	CLAIMED
Frame	4130 chromoly front triangle, forged 6061 chainstays	CLAIMED
Weight	75 lb	CLAIMED
Suspension travel	200 F / 170 R mm	CLAIMED
Wheels	29 / 27.5 in	CLAIMED
Tires	Maxxis Assegai 2.5" DH casing	CLAIMED
Drivetrain	Single-speed, 24T cog, KMC e1 chain	CLAIMED

Electronics

Throttle / app	Lekkie twist throttle, Bonnell Ride Control app	CLAIMED

General

Legal class	Faster than Class 2 (20 mph)	CLAIMED

Support

Warranty	1 year	CLAIMED

Pricing

MSRP (US)	$5,495–5,895 (by color)	REPORTED

Performance

Range	12–37 mi	CLAIMED

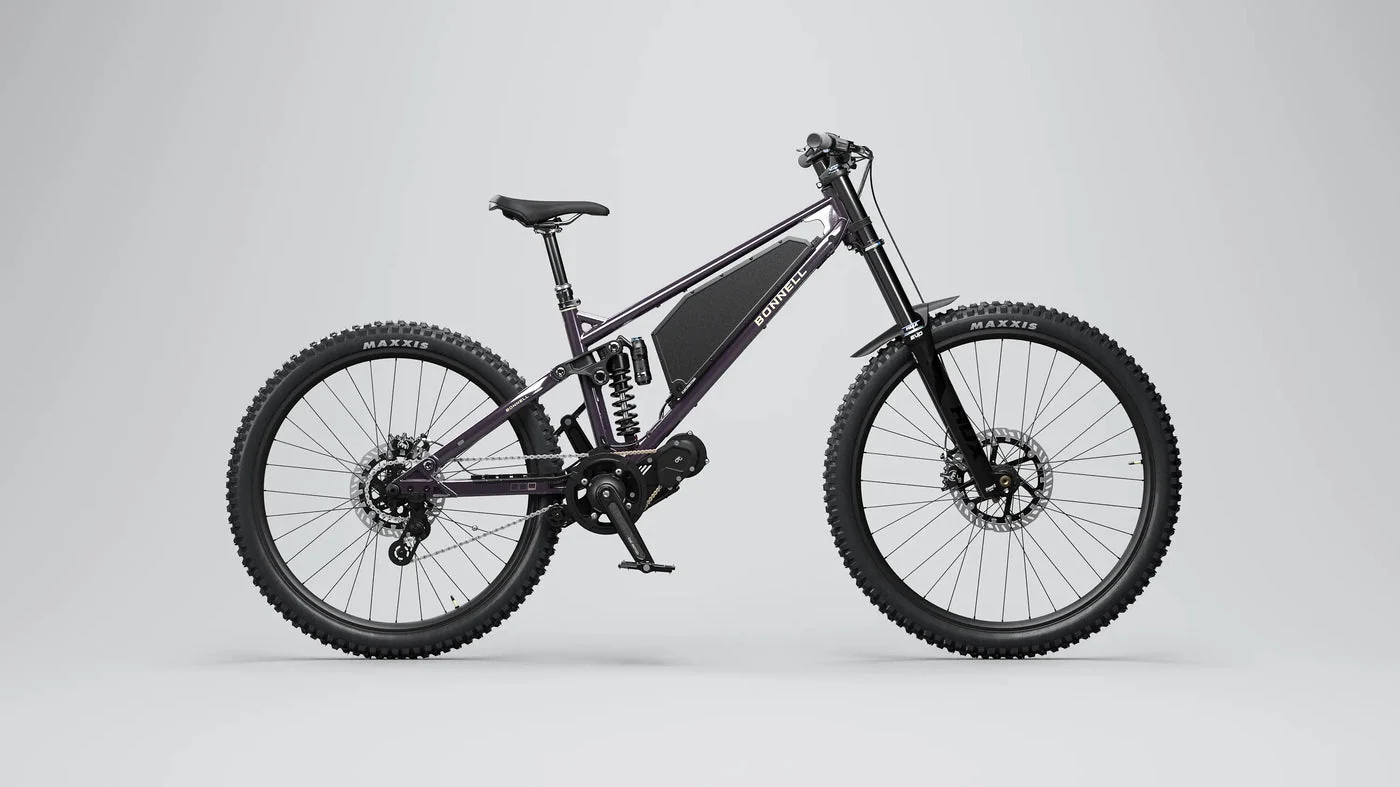

Texas Grey and Amethyst are $5,495 (discontinued colors); Graphite and Slate are $5,895. The listing names both a "TriAir 3CR" and a "Suntour Voro Coil" rear shock; check which ships.

Warranty: Charged Cycle Works says 1 year; Electric Cycle Rider says 24 months (battery 12 months / 500 hours).
